Budget Sensors
Product Description
Single carbon spike on silicon apex!
Based on BudgetSensors' well established Tap150-G probe.
The SHR-150 probe has a single hydrophobic diamond-like carbon extratip at the apex of Gold coated silicon etched probe. There are no additional smaller extratips near the main one, just one well defined extratip. The SHR-150 can be used even for imaging of rough surfaces - there will not be repeated features in the scan due to tip artefacts from extratips with different length and angle.
Consistent high quality at a lower price!
Coating Description
70nm Gold on both sides of the cantilever. Carbon spike not coated!

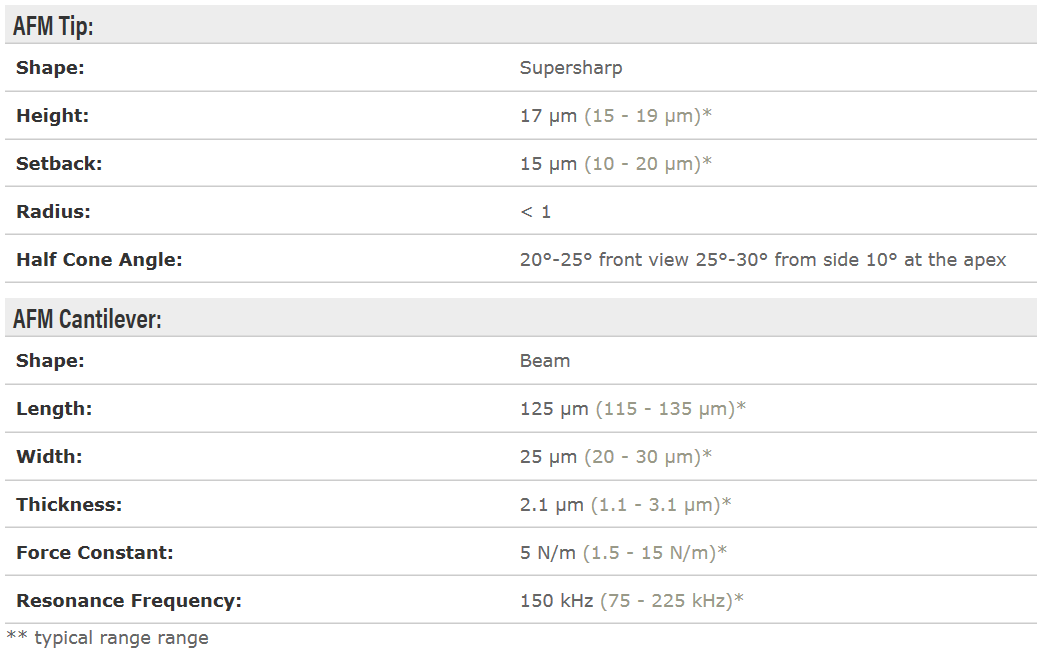

Full Technical Data
